AWB Airmaster HRD275 | 350 | G 4 filters + Bypass
AWB Airmaster HRD275 | 350 | G 4
This heat recovery filter set is produced in-house by hq-filters.nl with the filter standard ISO 16890 , which is equal to the original filters.
With our own production, we can offer high-quality product alternatives at attractive prices.

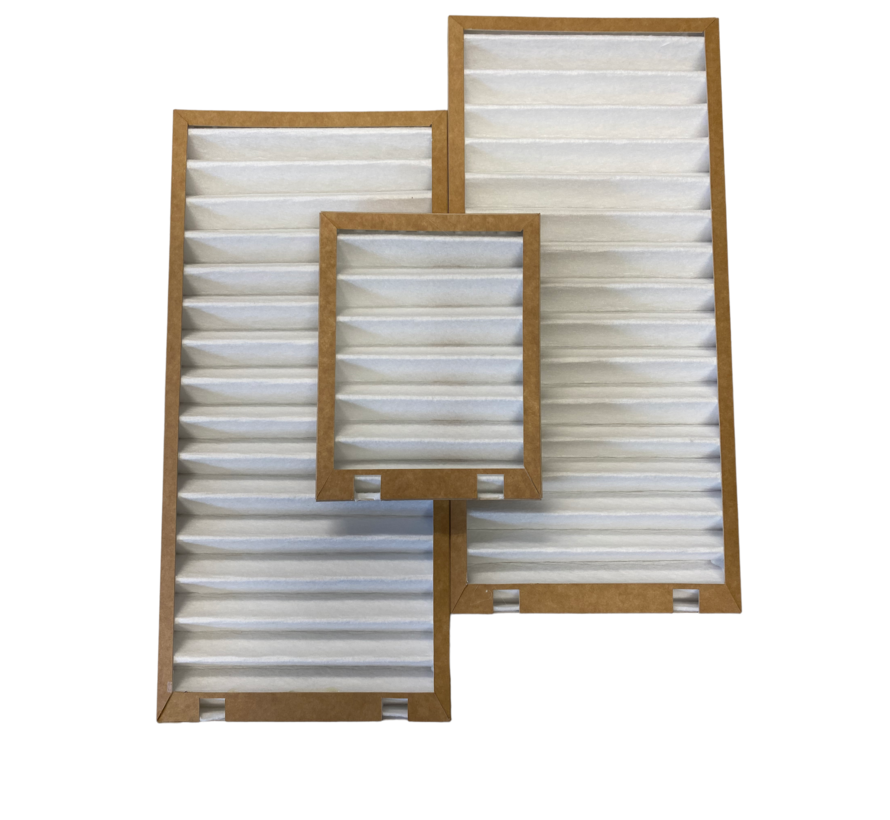

This set includes: 3 filters
Type: z-line - Dimension: 180 x 390 x 20 + 135 x 180 x 23 mm.
Filter class: G4 - EN779:2012 | Iso coarse 80% - ISO 16890
Brand: hq-filters.nl
AWB nr.: 0020020997
The HRV filters for the AWB Airmaster HRD can You easily replace and places in your HEAT EXCHANGER unit.
With the purchase of these heat recovery filters you bring fresh air from the outside in. Good ventilation is important to maintain the indoor climate of the home, but also to ensure that substances, dirt, bacteria and fungi cannot build up in the ventilation system.
The filter standard: EN799:2012 has been replaced by the filter standard: ISO16890 sinds since 1 July 2018
The filters are placed in so-called ePM categories.
This classification gives an accurate indication of which particle sizes are filtered out of the air.
PM1 stands for all types of particulate matter ('ParticulateMatter') that are smaller than 1 micron (μ = one thousandth of a millimeter):
- PM1: 1μ = 0.001 mm
- PM2.5: 2.5μ = 0.0025 mm
- PM10: 10μ = 0.01mm
The 'e' for PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.
Based on these values, the standard now divides filters into four groups that filter different dust particles:
- ISOCoarse< 50% (sand, fluff, hair)
- ISO ePM10 ≥ 50% (pollen, rock dust)
- ISO ePM2.5 ≥ 50% (mold traces, toner dust)
- ISO ePM1 (combustion particles, nanoparticles, viruses)
