Brink Elan E| G3 filters | 532613

Brink Elan E| G3 filters

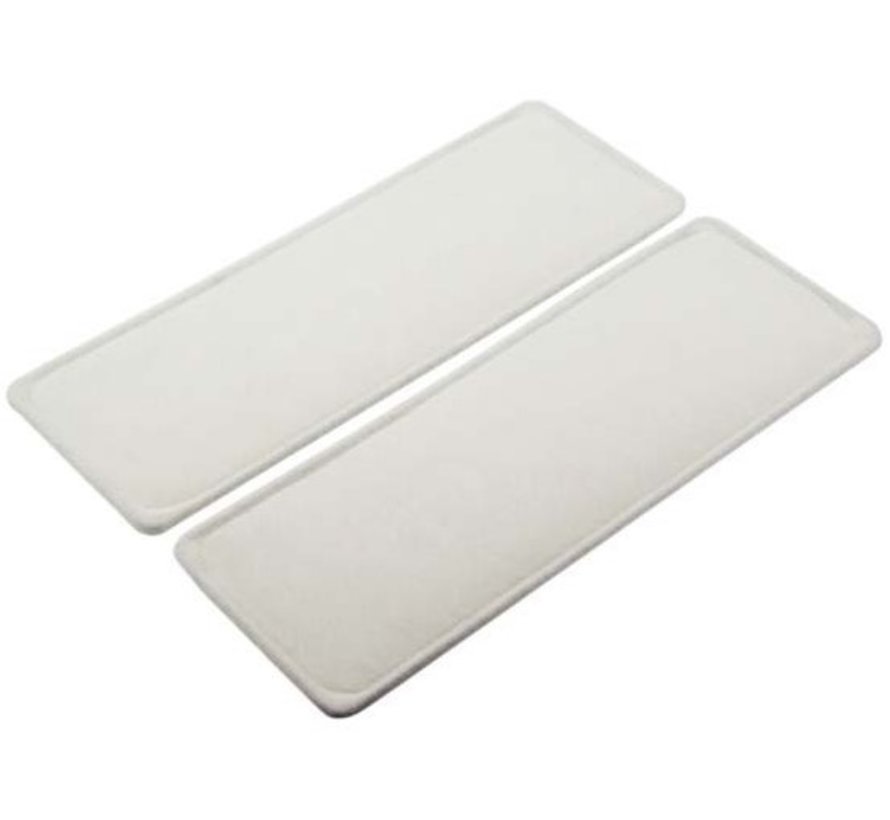

This set consists of: 2 filters - Packed per set, Dimensions: 525 x 185 mm.

Het serienummer van het toestel begint met 005730xxxxxx en 005731xxxxxx.

This heat recovery filter set  is produced in-house by hq-filters.nl with the filter standard  ISO 16890 , which is equal to the original filters.
With our own production, we can offer high-quality product alternatives at attractive prices.

Filter class: G3 - EN779:2012 | ISO coarse 50% - ISO 16890

Type: wire frame

Dimensions: 525 x 185 mm.

Brand: HQ-filters.nl

Brink no. 532613

With the purchase of these heat recovery filters you bring fresh air from the outside in. Good ventilation is important to maintain the indoor climate of the home, but also to ensure that substances, dirt, bacteria and fungi cannot build up in the ventilation system.
Regular filter changes mean significant energy savings.

The filter standard: EN799:2012  has been replaced by the filter standard: ISO16890 sinds since 1 July 2018
The filters are placed in so-called ePM categories.
This classification gives an accurate indication of which particle sizes are filtered out of the air.

PM1 stands for all types of particulate matter ('ParticulateMatter') that are smaller than 1 micron (μ = one thousandth of a millimeter):
PM1: 1μ = 0.001mm
PM2.5: 2.5μ = 0.0025mm
PM10: 10μ = 0.01mm
The 'e' for PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.

Based on these values, the standard now divides filters into four groups that filter different dust particles:
ISOCoarse< 50% (sand, fluff, hair)
ISO ePM10 ≥ 50% (pollen, rock dust)
ISO ePM2.5 ≥ 50% (mold spores, toner dust)
ISO ePM1 (combustion particles, nanoparticles, viruses)

For questions, suggestions or special filter requests, call 0513-648364 or send an email to [email protected]

You can easily replace the HRV filters for the Brink Elan E yourself and place them in your HRV unit
