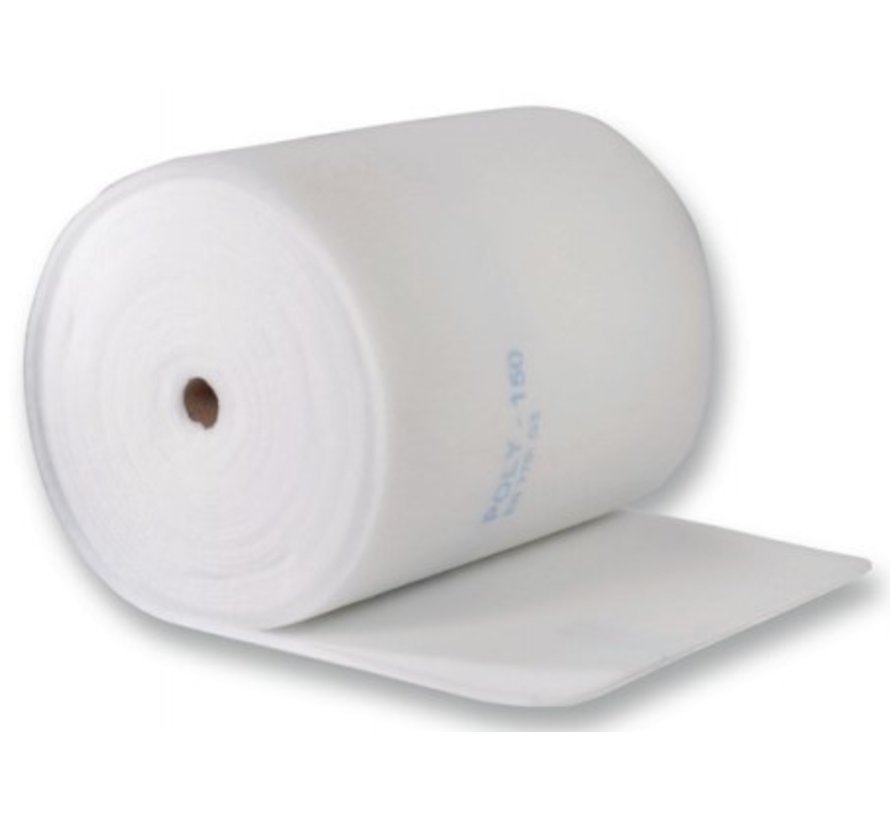

Filter media G2 - ISO Coarse 50% - 1000 x 2000 x 5 mm.
Filter media G2 - ISO Coarse 50% - VNF 150
Roll size: 1000 x 2000 x 5 mm.
Do you need customization? We are happy to provide a tailor-made offer without obligation.
Send your request to: [email protected]
Air filter media designed for pre- or coarse filtration of
the air inlet in general ventilation and air handling systems
installed in the railway industry, public buildings, offices, factories and all kinds of equipment. Also suitable as a pre-filter in car paint shops or in engine rooms of ships.
Filter media VNF 150 - series is thermally bonded and reinforced to ensure high dust pick-up. The clean air side is lightly smoothed and printed for easy identification to ensure correct installation.
TECHNICAL DATA
Nominal airflow : 5400 m3/h/m2
Air velocity : 1.5 m/s
Initial pressure drop : 20 Pa
Initial pressure drop : 250 Pa
Average arrest : 79%
Dust holding capacity : 450 g/m2 (250Pa)
Regenerable/washable: no
The VNF 150 series complies with the European ISO16890 standard and European fire classification standards –
NFF16-101 F1 classified, NF P 92-503 M1 classified, EN45545, DIN
53438-F1 and are self-extinguishing
For questions, suggestions or special filter requests, call 0031 513-648364 or send an e-mail to [email protected]
